Product Dewspiption

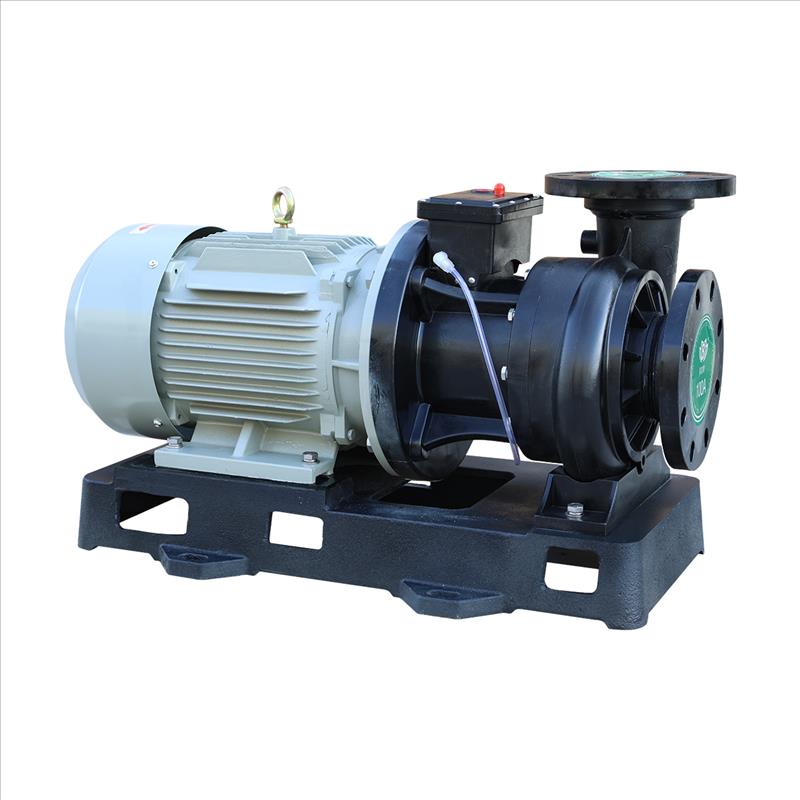

The Meibao MCK Series Vortex Chemical Centrifugal Pump (15-30HP) is a high-performance pumping solution engineered for demanding chemical transfer applications requiring high flow and high pressure. Featuring an advanced vortex volute design, this pump effectively improves fluid passing efficiency, reduces internal energy loss, and delivers exceptional performance.Equipped with a cooling water tank circulation protection system, the pump can achieve no-load (idling) operation without damaging mechanical seal components.The pump body is available in GFRPP, CFRPP, CPVC, and PVDF materials, providing excellent resistance to a wide range of aggressive chemicals.With an integrated base design for enhanced stability and optional permanent magnet motor models for energy savings, the MCK Vortex series is the ideal choice for industrial wastewater treatment, PCB etching, electroplating, and chemical processing.
High Flow Capacity (Up to 230m³/h)
The main spiral flow channel vortex design effectively improves fluid passing efficiency, reduces internal energy loss, and achieves maximum flow rates up to 230m³/h .
High Pressure Performance (Up to 4.8kg) Featuring a newly designed high-efficiency impeller with advanced hydraulic modeling, the pump can withstand pressures up to 4.8kg, making it suitable for high-pressure transfer applications .
True Idling Capability
Equipped with a cooling water tank circulation protection system, the pump can operate without liquid (dry running) without damaging the seal components .
Superior Corrosion & Temperature Resistance
Constructed from high-quality PVDF materials, the pump is resistant to a wide range of acids (including 98% concentration), alkalis, and organic solvents, with operating temperatures up to 90°C .
Reliable Sealing System
Features imported SSIC (Silicon Carbide) wear-resistant plates and PTFE expansion rings, ensuring reliable sealing performance and long-term stability .
Typical Applications
Chemical Processing: Transfer and circulation of strong acids, alkalis, and corrosive chemicals.
