Product Dewspiption

The MD Series Out-of-Tank Vertical Chemical Pump in the 15-30 HP range is a high-performance industrial pumping solution engineered for the most demanding fluid handling applications. Featuring advanced vortex impeller technology, this series delivers exceptional flow rates and pressure capabilities for large-scale corrosive fluid transfer. Constructed from premium GFRPP or PVDF materials with a stainless steel long-shaft motor, these pumps offer superior corrosion resistance, durability, and maintenance-free operation. With high-efficiency motors from leading brands (TECO, Kingland, etc.) and a robust one-piece molded design, the MD Vortex series provides reliable, energy-saving performance for continuous operation in wastewater treatment, chemical processing, and industrial manufacturing.

High-Efficiency Motors

Equipped with premium brand motors (TECO, Kingland, etc.) featuring IE3/IE4 efficiency ratings, delivering significant energy savings and reduced operating costs.

Superior Corrosion Resistance
Pump body constructed from high-grade GFRPP or PVDF materials, providing exceptional resistance to a wide range of acids, alkalis, and aggressive chemicals.

One-Piece Molding Design

Integrated molding technology provides higher structural strength, eliminating leak points and ensuring long-term reliability.

Triple Protection Design

Engineered with multiple protective features for extended service life, ensuring reliable operation under demanding conditions.

Stainless Steel Long-Shaft Motor

Features a SUS304 stainless steel shaft with high-speed butt welding technology, ensuring excellent corrosion resistance and shaft strength.

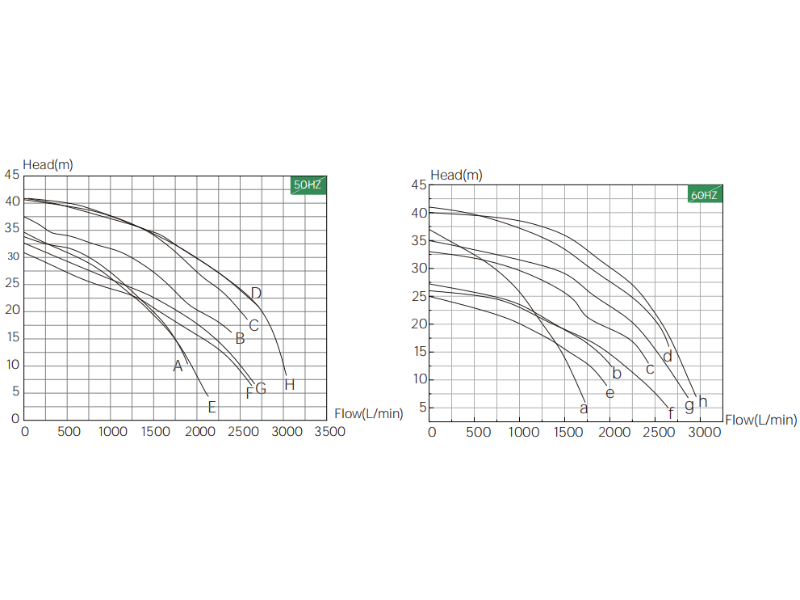

Performance Curve

PDF download available on request

Typical Applications

Electroplating Industry: Chemical solution transfer and circulation.

PCB Manufacturing: Etching and developing solution transfer.

Wastewater Treatment: Chemical dosing and corrosive fluid transfer.

Metal Surface Treatment: Chemical baths and cleaning solutions.

Max Flow

118.2

m³/h

Max Head

Power Range

11.2-22.4

Certification

ATEX Optional

Technical Specifications

Model Range

MD-100VK-15 to MD-125VK-30

Pump Type

Out-of-Tank Vertical Pump

Materials

GFRPP, PVDF

Connection

Flange

Max Temperature

Max Pressure

Voltage

220V / 380V, 3Φ

Warranty

Model Coding System

MD100VK5

MD= Series

100 / 125 = Diameter (mm)

VK / VP= Specific Gravity

15 / 20 / 25 /30 = Motor Horsepower (HP)

Material Options

GFRPP

General chemicals, max-C

PVDF

High purity, max -°C

SUS304

High temp, max-°C

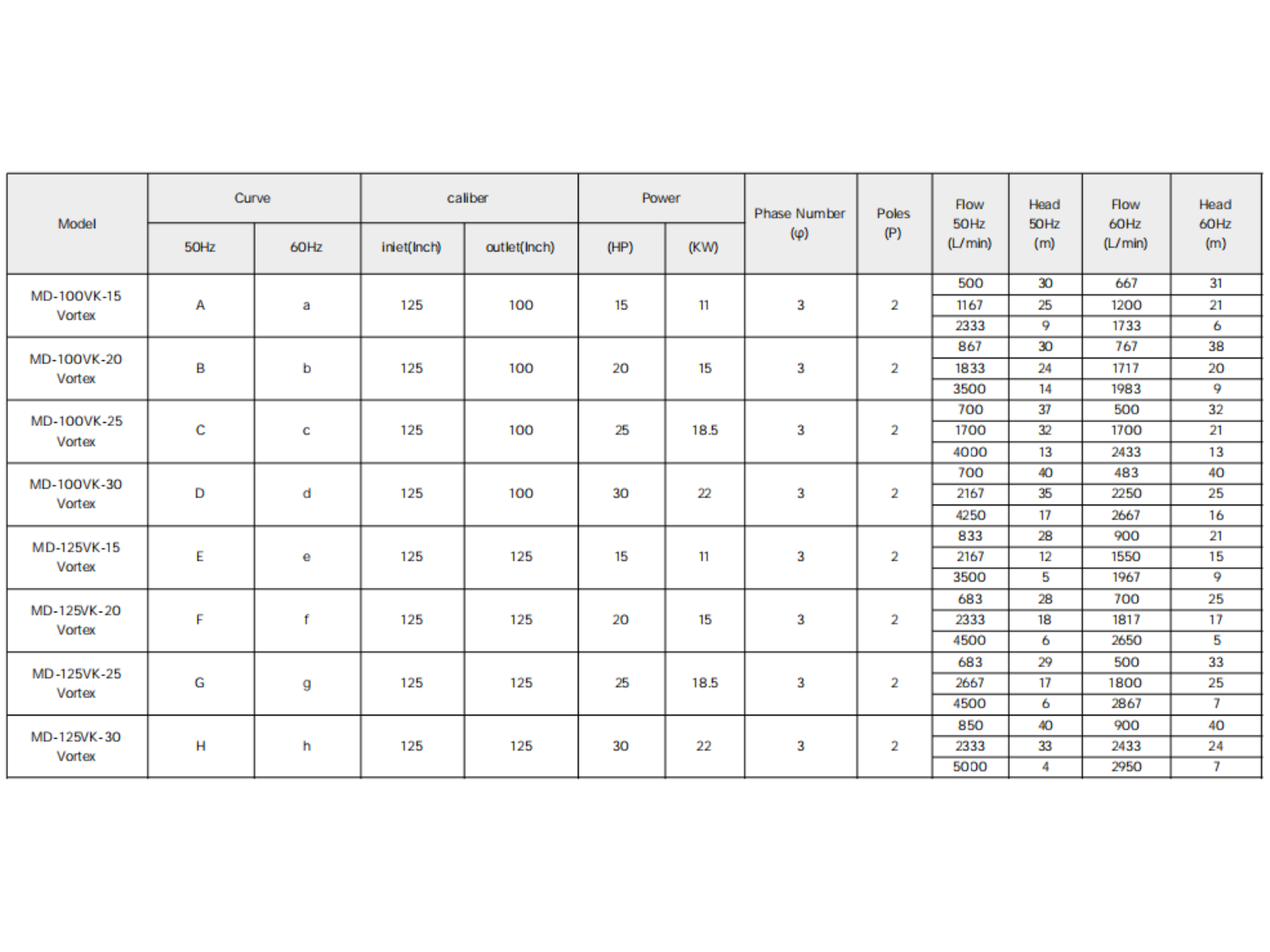

Detailed Parameter Table

Download PDF

Out-of-Tank Vertical Chemical Pump 15-30 HP.png

What is the maximum viscosity the MB pump can handle?

The MB magnetic drive pump is optimized for low-to-medium viscosity liquids (up to ~200 cPs at operating temperature). For high-viscosity media above 200 cPs, please contact our engineering team — we may recommend a reduced speed operation or a gear pump alternative.

Can the MB pump handle HF acid?

Yes. The MB pump with PTFE or PVDF wet-end is fully compatible with hydrofluoric acid at concentrations up to 50% and temperatures up to 80°C. PTFE offers the best HF resistance. For semiconductor-grade HF applications, we recommend our dedicated HF Series with ultra-pure material specifications.

What is the pump's NPSH requirement?

NPSH requirements vary by model and operating point. Typically, the MB series requires 2-3m NPSHa. We recommend ensuring the available NPSH (NPSHa) from your installation is at least 1m higher than the pump's required NPSHr. Full NPSH curves are available in the product datasheet.

Do you offer ATEX / explosion-proof versions?

Yes. ATEX Zone 1 and Zone 2 certified models are available for environments where flammable gases or vapors may be present. Please specify the ATEX zone and gas group (IIA, IIB, or IIC) when requesting a quote.

Can I get spare parts for this pump?

Yes. We stock a comprehensive range of spare parts for the MB series including magnet assemblies, impellers, shaft sleeves, and containment shells. Parts can be shipped within 5-10 working days to most destinations. We recommend ordering a spare parts kit with your initial order for critical applications.
