| Brand Name: | Meibao |
| Model Number: | MQ50AL-SS/TF/TF/SS |
| MOQ: | 1 |
| Delivery Time: | 5 days |
| Payment Terms: | T/T,L/C,WeChat Pay |

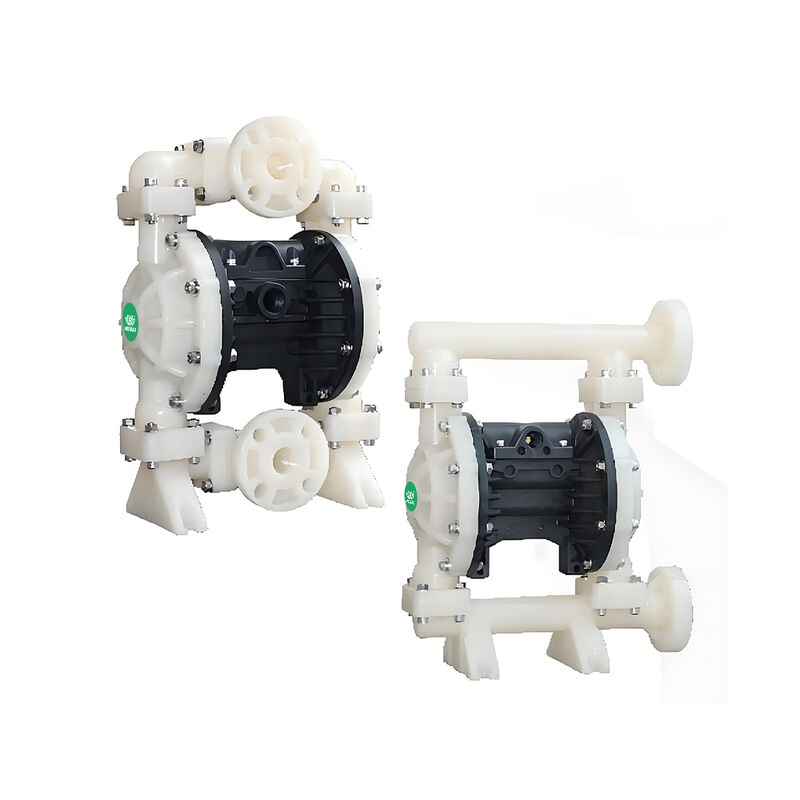

Product Name: PVDF Plastic air Diaphragm Pump
Parameter Range And Product Features:
Flow Rate: 57 l/min
Max. Working Pressure: 8.4 bar
Air Inlet: 1/2" or 3/4"
Pump Body Material: PVDF
Diaphragm Material: PTFE (Teflon)
Valve Ball Material: PTFE,Stainless steel, Santoprene
Seals Material: Viton® (Standard) or optional EPDM, NBR
Max. Particle Size: < 3.0 mm
Features: Explosion-proof, can run dry without damage. Self-priming capability, no electricity required. Excellent chemical resistance, leak-free operation, and easy to maintain with no complex tools. Suitable for transferring abrasive slurries, viscous fluids, and various chemicals.
