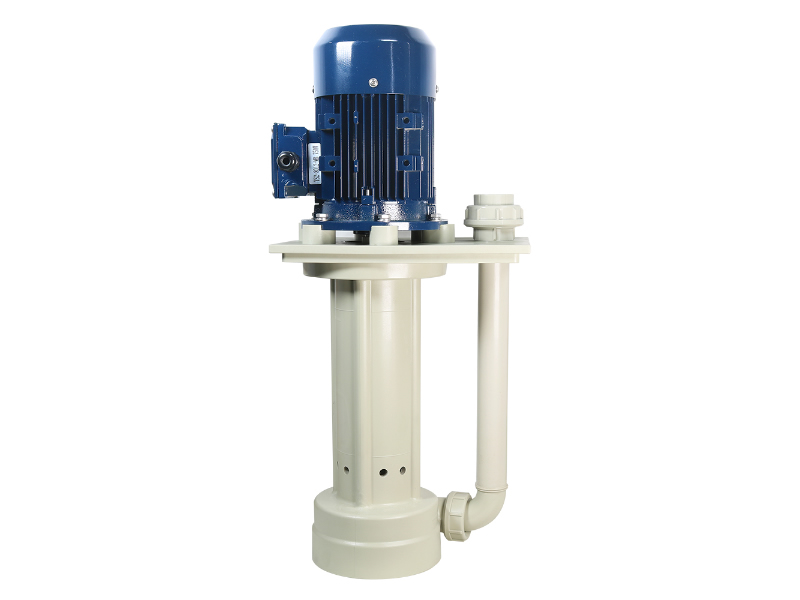

In-tank continuous plating vertical pump

In-Tank Pump, Vertical Pump, Corrosion Resistant, PPH, PVDF, Stainless Steel Shaft, IE3 Motor, Non-Clogging, Continuous Plating, OEM Available

Quick Specs

30m³/h
Max Flow

19 m
Max Head

0.065 - 22
kW Power

-
Max Temp

-
Max Pressure

-
Warranty

Request Quotation

Response within 24 hours | Technical support available

Product Dewspiption

MIT Series in-tank vertical pumps are designed for reliable, continuous operation in corrosive fluid handling. Constructed with high-grade PPH or PVDF materials, these pumps offer exceptional resistance to a wide range of acids and alkalis. Their vertical, submersible design makes them ideal for electroplating, PCB etching, and chemical filtration applications where space is limited and non-clogging performance is critical.

Key Features

Optimized Flow Channel

Designed using advanced fluid mechanics principles to maximize hydraulic efficiency and reduce energy consumption.

Reverse Impeller & Gas-Liquid Separation
Features a specially designed reverse impeller and rotary seal for effective gas-liquid separation, ensuring stable operation and preventing air lock.

Robust Construction

The main pump body is engineered with four reinforcing ribs, providing exceptional structural strength and durability even under demanding conditions.

Premium Motor Options

Equipped with high-efficiency IE3/IE4 and variable frequency drive (VFD) compatible motors for superior performance and energy savings.

Maintenance-Friendly Design

Modular construction with standardized components allows for quick and easy disassembly, simplifying routine inspection and maintenance.

Performance Curve
-

PDF download available on request

Typical Applications

Electroplating Industry: Continuous plating solutions transfer and circulation.

PCB Manufacturing: Etching solution and chemical filtration.

Wastewater Treatment: Chemical dosing and fluid transfer.

Metal Surface Treatment: Chemical baths and cleaning solutions.

Chemical Processing: Circulation of various corrosive liquids.

Max Flow

m³/h

Max Head

Power Range

0.065 - 22

Certification

ATEX Optional

Technical Specifications

Model Range

MIT-15 to MIT-125

Pump Type

In-Tank Vertical Pump

Materials

PPH, PVDF

Connection

Union

Max Temperature

Max Pressure

Voltage

220V / 380V, 3Φ

Warranty

Model Coding System

MSH50PVDF380V

MIT= Series

15 / 25 / 32 /40 / 50 / 65 / 80 / 100 / 125 = Diameter (mm)

PPH/CFRPP= Material

380V = Voltage

Material Options

PPH

General chemicals, max-C

PVDF

High purity, max -°C

GFRPP

High temp, max-°C

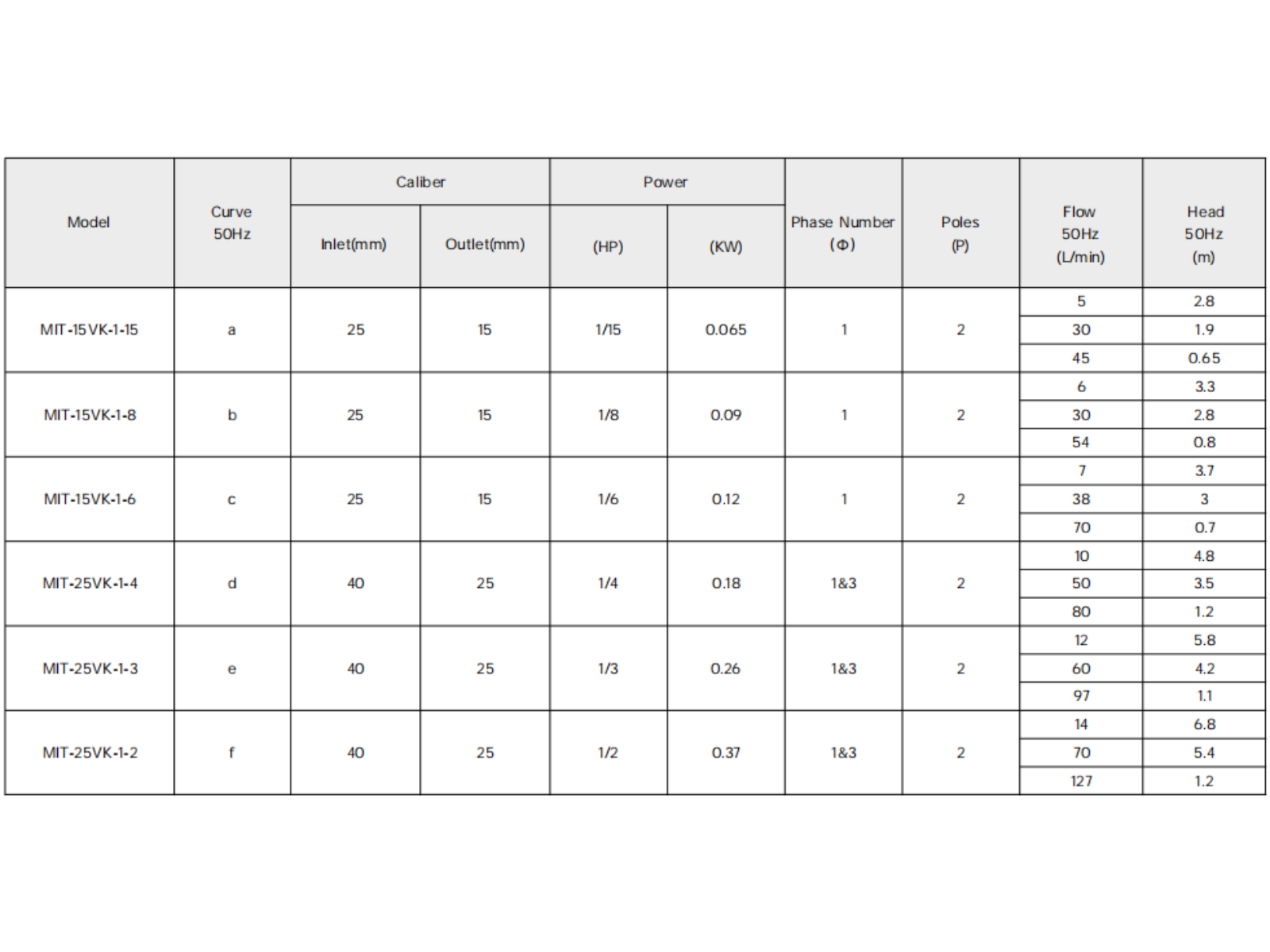

Detailed Parameter Table

Download PDF

In-tank continuous plating vertical pump.png

What is the maximum viscosity the MB pump can handle?

The MB magnetic drive pump is optimized for low-to-medium viscosity liquids (up to ~200 cPs at operating temperature). For high-viscosity media above 200 cPs, please contact our engineering team — we may recommend a reduced speed operation or a gear pump alternative.

Can the MB pump handle HF acid?

Yes. The MB pump with PTFE or PVDF wet-end is fully compatible with hydrofluoric acid at concentrations up to 50% and temperatures up to 80°C. PTFE offers the best HF resistance. For semiconductor-grade HF applications, we recommend our dedicated HF Series with ultra-pure material specifications.

What is the pump's NPSH requirement?

NPSH requirements vary by model and operating point. Typically, the MB series requires 2-3m NPSHa. We recommend ensuring the available NPSH (NPSHa) from your installation is at least 1m higher than the pump's required NPSHr. Full NPSH curves are available in the product datasheet.

Do you offer ATEX / explosion-proof versions?

Yes. ATEX Zone 1 and Zone 2 certified models are available for environments where flammable gases or vapors may be present. Please specify the ATEX zone and gas group (IIA, IIB, or IIC) when requesting a quote.

Can I get spare parts for this pump?

Yes. We stock a comprehensive range of spare parts for the MB series including magnet assemblies, impellers, shaft sleeves, and containment shells. Parts can be shipped within 5-10 working days to most destinations. We recommend ordering a spare parts kit with your initial order for critical applications.

View All FAQ Ask a Question
